DS170 COD. 075100010

HEAT CALENDER
FOR DYE-SUBLIMATION

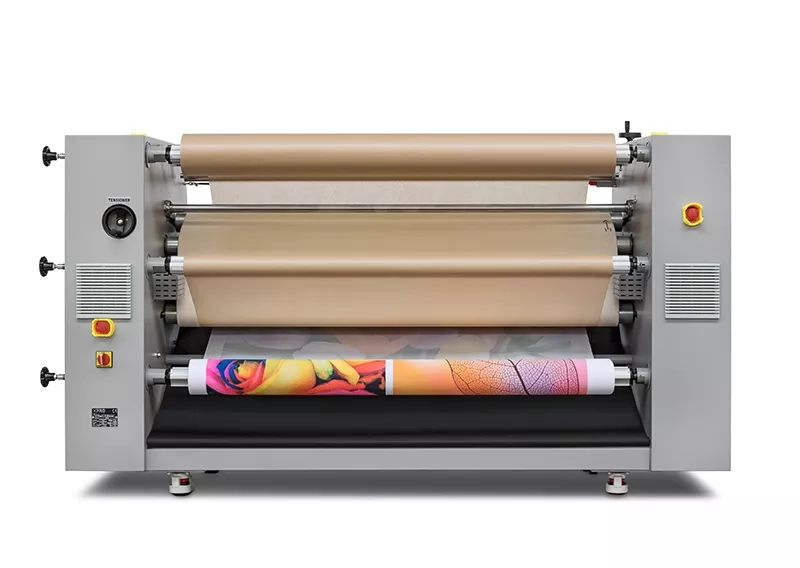

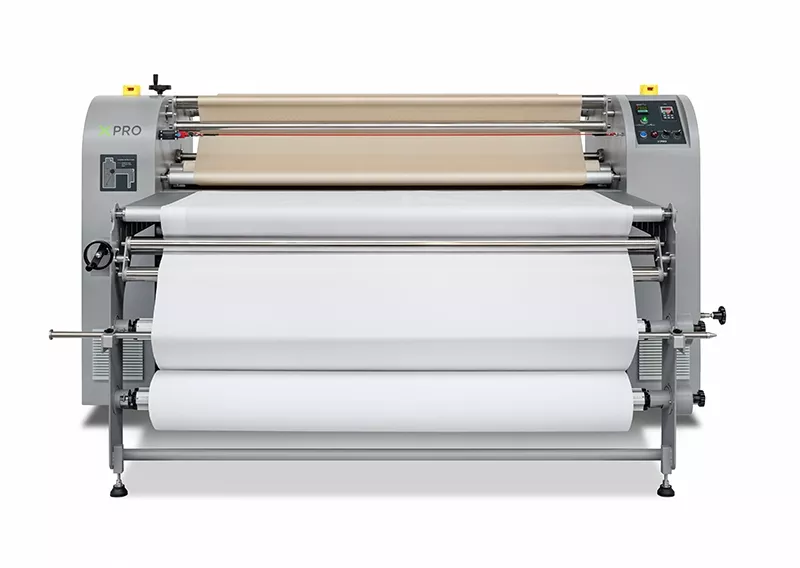

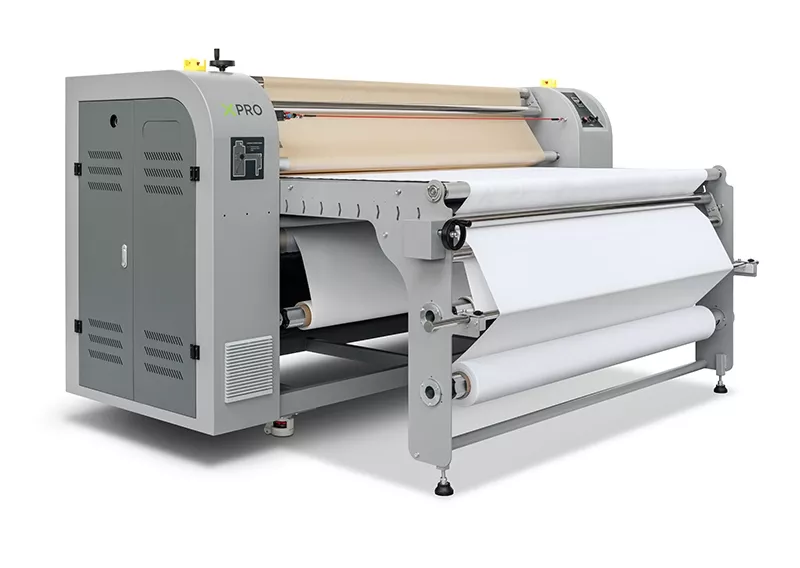

Oil heated drum calender designed for the thermic transfer from dye sublimation transfer paper to fabric and for fixing the printed ink on fabric.

Main features

  • Compact machine equipped with oil heated teflon coated drum which ensures great sublimation results thanks to the temperature uniformity and stability throughout the whole working process
  • Long-lasting suitable for indoor and outdoor uses printed fabrics characterized by vivid and brilliant colours due to the excellent ink penetration
  • 6 shafts: 3 brake-provided unwinding shafts and 3 motorized clutch-provided rewinding shafts

Three operating modes

  1. “roll to roll” for the continuous printing of fabrics from sublimation paper
  2. “single piece” for the printing of fabric pieces from sublimation paper in roll and single pieces
  3. “reactivation and fixing” of sublimated inks printed directly on fabrics

Applications

  • Curtains and interior decorations such as cushions (industrial volumes)
  • Sport shirts and garments
  • Promotional items
  • Exhibition stands, flags and shop decorations
  • Fashion, bags, purses

Suitable materials

  • Woven fabric
  • Synthetic knitted fabric
  • Nonwoven fabric (polyester, nylon, acrylic)

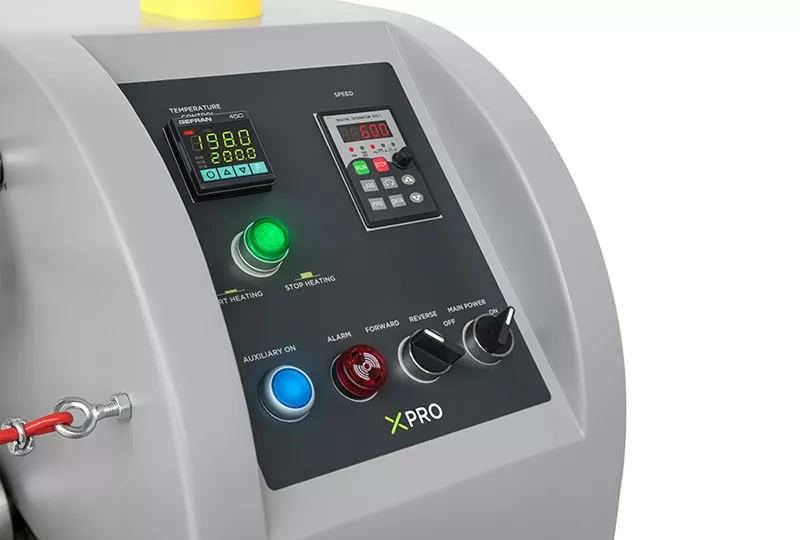

Easy to use temperature and speed control panel
Millimeter scale on the shaft for the right positioning of the rolls

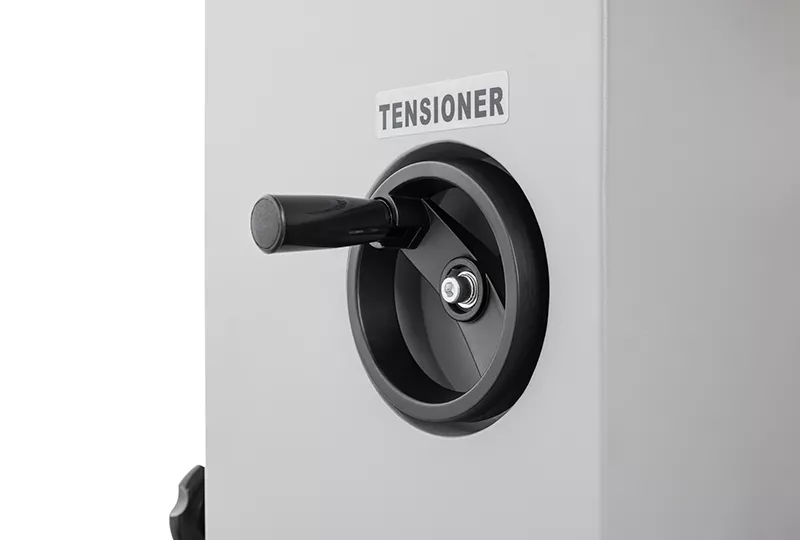

Felt tensioning adjustment

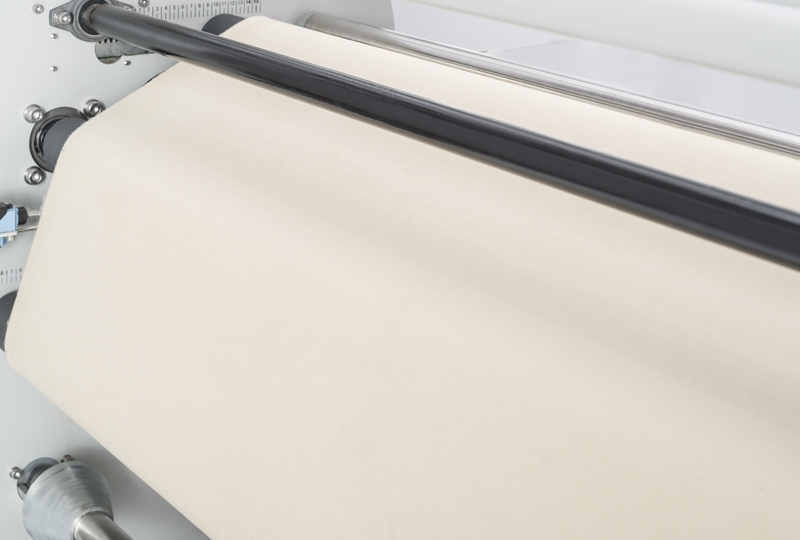

High quality felt belt
Felt belt automatic tracking system through PLC
Fabric tensioning adjustment

DS170 Specifications

Working width
1700 mm (67 in)
External diameter of the oil heated drum
Ø 220 mm (8,6 in)
Working height
950 mm (37 in)
Adjustable temperature
up to 220°C
Adjustable speed
up to 2 m/min.
Dimensions - Table included (W x L x H)
2500 x 1950 x 1360 mm (98 x 77 x 53 in)
Table dimensions (W x L x H)
2150 x 1040 x 950 mm (85 x 41 x 37 in)
Power Supply
400V (3P) - 50 Hz - 10.000 W
Packing dimensions (W x L x H)
2800 x 1200 x 1950 mm (110 x 47 x 77 in)
Weight
700 kg (1543 lb)
Packing weight
850 kg (1874 lb)
